ECHODYNE
EchoShield®, EchoGuard®, EchoFlight®
Watching vs. seeing – there’s a difference. A vital one. ECHODYNE sees.
MESA® technology
Technological innovation that ensures image accuracy and detail comparable to the results from large-scale stationary AESA radars
Advantages of ECHODYNE radars
Best range-to-accuracy parameters: The Ku-band offers exceptional resolution and ability to track a large number of targets simultaneously Radically reduced size, weight, and power consumption Wide field of view Integration: Can be used as additional equipment in existing air defense or electronic intelligence systems due to its ability to provide detailed imagery of targets at long ranges
Sales and support in UKRAINE
“Ready to go” solutions: Comprehensive support and hardware (installment, setup, settings, training) Training: Personnel training that simulates real-life/combat scenarios Custom requests: Customized configurations for non-standard tasks Technical support: 24/7 Service / replacements
HOW TO BUY?
ECHODYNE’s official technical and sales partner in Ukraine is BIRD IN THE SKY.
Contact for requests: yehor.tereshchenko@bird-in-the-sky.com

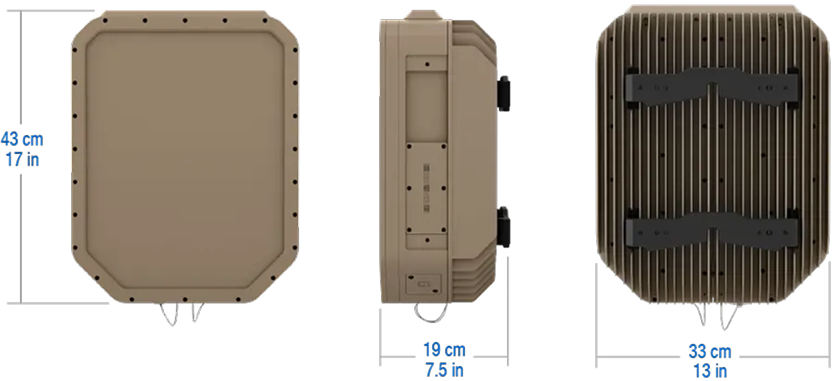

EchoShield®
RANGE (C-UAS)
12 km
FREQUENCY
Ku-band (15.4 – 16.6 GHz)
FIELD OF VIEW
130° Azimuth 90° Elevation
TARGETS TRACKED SIMULTANEOUSLY
1000
WEIGHT
18 kg
POWER
250 W

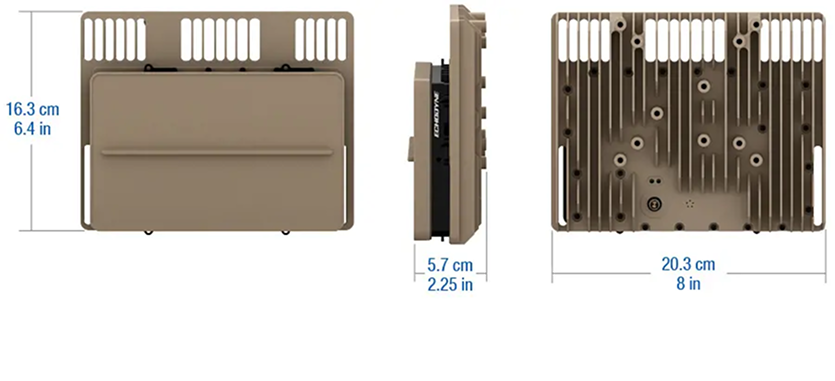

EchoGuard®
RANGE (C-UAS)
2.2 km
FREQUENCY
Ku-band (24.45 – 24.65 GHz)
FIELD OF VIEW
120° Azimuth 80° Elevation
TARGETS TRACKED SIMULTANEOUSLY
20
WEIGHT
1.25 kg
POWER
50 W
EchoFlight®
RANGE (C-UAS)
2 km
FREQUENCY
Ku-band (24.45 – 24.65 GHz)
FIELD OF VIEW
120° Azimuth 80° Elevation
TARGETS TRACKED SIMULTANEOUSLY
20
WEIGHT
0.817 kg
POWER
45 W
